The 150Mbps Micro Wireless N USB Adapter (model TEW-648UBM) quickly connects a laptop or desktop computer to a high speed wireless n network.

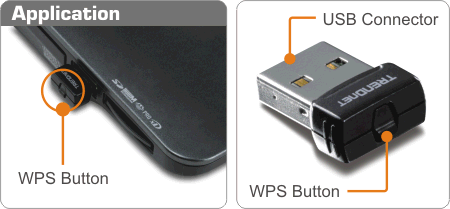

Enjoy proven wireless n speed and reliability, in a micro design that extends less than three eighths of an inch (9mm) from the edge of a computer. Connecting to a network is made easy with the external one-touch Wi-Fi Protected Setup (WPS) button. Advanced wireless encryption protects your valuable data. Wi-Fi Multimedia (WMM) Quality of Service (QoS) prioritizes important video, audio, and gaming traffic. Seamlessly stream video, download files, and play games with this ultra compact wireless n adapter.



Interface USB 2.0
Standards IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n (draft 2.0)
Button WPS button: enables quick wireless connection with WPS function
Power Consumption Receive mode: 100mA (max.)
Transmit mode : 210mA (max)
Supported OS Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
Mac OS X 10.4, 10.5, 10.6
Dimensions (LxWxH) 20 x 15 x 7 mm (0.8 x 0.6 x 0.3 in.)
Weight 1 g (0.03 oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity Max. 95% (non-condensing)
Certifications CE, FCC
Modulation OFDM, DSSS
Antenna Built-in on board antenna
Frequency 2.412 ~ 2.484 GHz
Data Rate (auto fallback) 802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 150Mbps
Output Power 802.11b: 14dBm (typical)
802.11g: 11dBm (typical)
802.11n: 10dBm (typical)
Receiving Sensitivity 802.11b: -84dBm (typical) at 11mpbs
802.11g: -69dBm (typical) at 54Mbps
802.11n: -66dBm (typical) at 150Mbps
Encryption 64/128-bit WEP, WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
Channels 1~11 (FCC), 1~13 (ETSI)
